Need Help for Your Terminal Box for your Requirement? KDM is your Reliable and to-go Terminal Box Manufacturer and Supplier

  • Heavy-duty terminal boxes
  • MOQ start at 1pc
  • Customize panel based on own drawing
  • 100% guaranteed-quality product

Email your inquiry now.

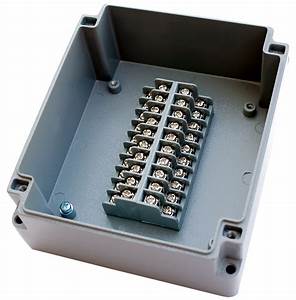

Terminal Box title
Terminal Junction Box
Terminal Junction Box

KDM terminal junction box offers maximum protection and durability to the equipment. They are made from high-grade materials.



Aluminum Terminal Box
Aluminum Terminal Box

The aluminum terminal box is well suited for indoor and outdoor environments. It has excellent corrosion resistance. Prevent the ingress of dust, dirt, and other elements in the equipment.

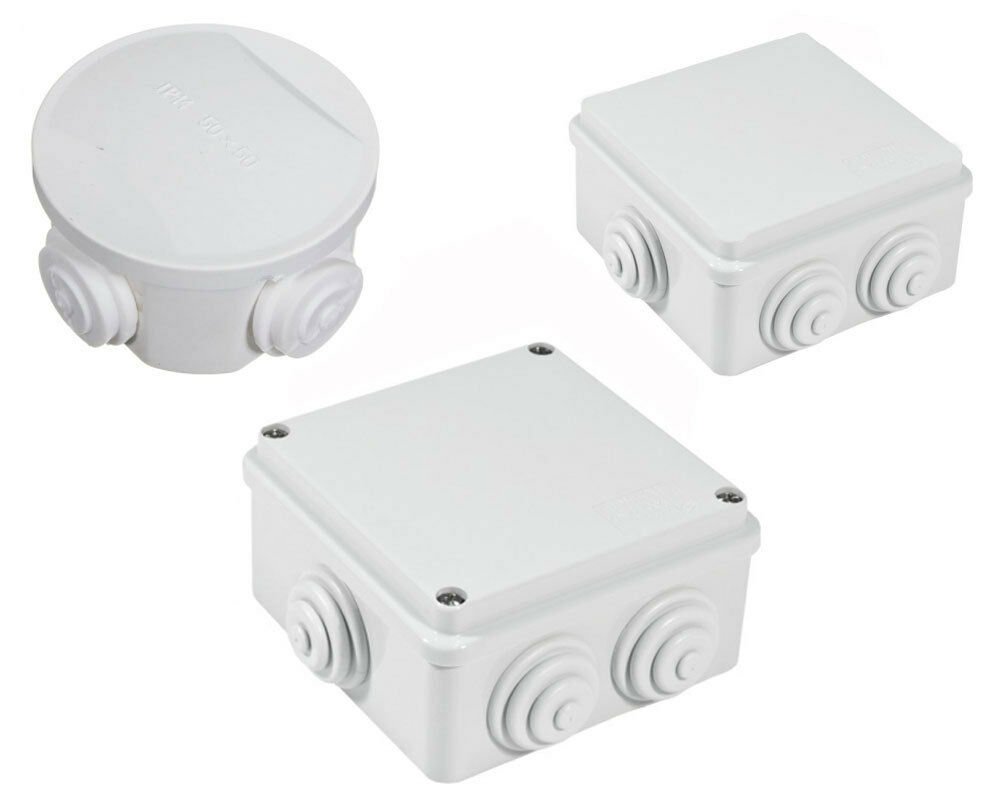

Outdoor Terminal Box
Outdoor Terminal Box

Our outdoor terminal boxes are available in different configuration. In various sizes, style, design and colors, you can find the best selection for your requirement.

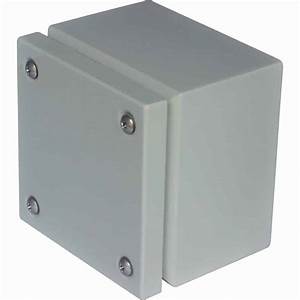

P66 Terminal Box
IP66 Terminal Box

The IP66 terminal box is manufactured and engineered according to the advanced technology.  We have a different state of the art equipment in which the boxes are being processed.

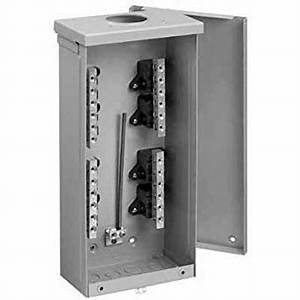

3 Phase Terminal Box
3 Phase Terminal Box

This 3 phase terminal box is suitable use for commercial and industrial application. They can provide site protection from damages of electric circuit. These boxes are RoHS compliant.

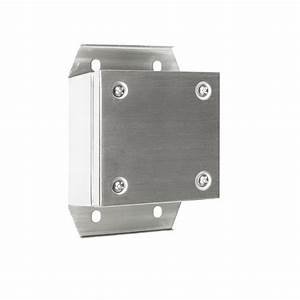

Stainless Steel Terminal Box
Stainless Steel Terminal Box

KDM stainless steel terminal box is available in different sizes and styles. This also comes with a degree of IP protection, designed to meet various electrical devices that been use in diverse areas.



Waterproof Terminal Box
Waterproof Terminal Box

Waterproof terminal box offered by KDM is excellent for their sturdiness. Durable and practical, perfect for indoor and outdoor electrical protection and packaging. Also suitable for a wide variety of industrial applications.

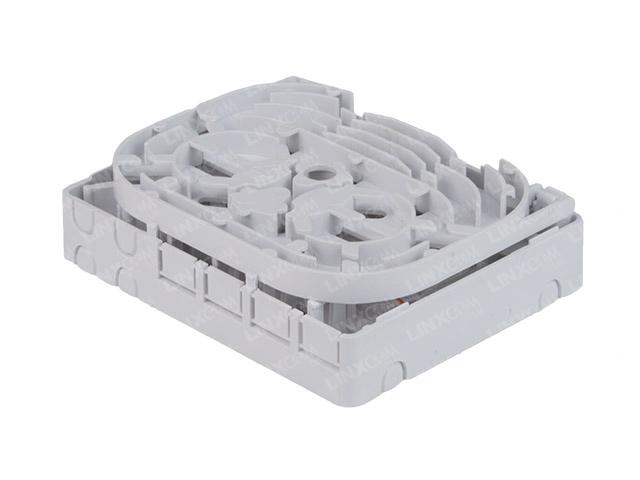

Indoor Terminal Box
Indoor Terminal Box

Are you looking for a lightweight, compact and quality indoor terminal box for your business? KDM is your ideal choice. We have range of unit that will help you with all your equipment need.

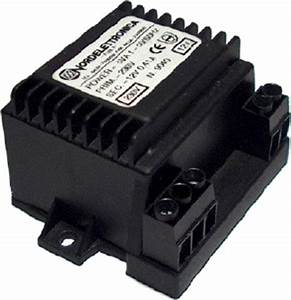

Transformer Terminal Box
Transformer Terminal Box

The transformer terminal box is offered at the most competitive cost. Precise, heavy-duty, and best quality cabinets. All product has been processed through the advanced equipment. These products specifically meet international and national standards.

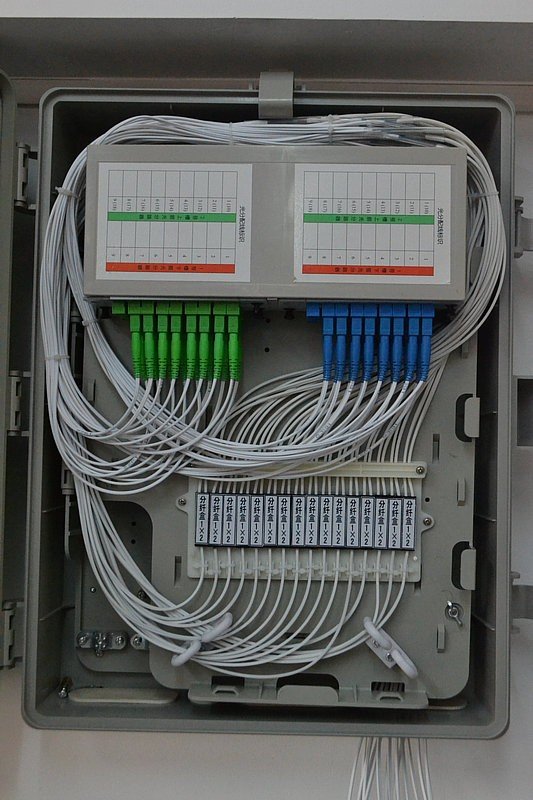

Cable Terminal Box
Cable Terminal Box

Find the top-quality stainless steel terminal box for your business with KDM. Save your cost and time ultimately also you will guarantee stress-free shopping with us.

Related Product with Terminal Box

https://www.kdmsteel.com/wp-content/uploads/2019/11/a-Utility-Box.jpg
Find wide variety of utility box with one of the leading manufacturer in China, KDM. Get best deal with us.
https://www.kdmsteel.com/wp-content/uploads/2019/11/b-Junction-Box.jpg
The high performance, durable junction box KDM offered is made up from premium quality raw material.
https://www.kdmsteel.com/wp-content/uploads/2019/11/c-400AMP-Box.jpg
400AMP Box manufactured by us is built for equipment safety and ease of installation. Suitable for long term uses.
https://www.kdmsteel.com/wp-content/uploads/2019/11/d-EMC-Box.jpg
Our EMC box is guaranteed for long-life installations. Excellent functionality, ensure a perfect electrical packaging.

Send Your Inquiry on KDM Terminal Box Now

  • Skilled and experienced craftsmen to manage your orders
  • 10 years of enclosure production experienced
  • Custom-made design for your project
  • Fast sample production

KDM Terminal Box

Terminal Box a

KDM terminal box is designed and engineered to meet the most thermal and thermostats requirements.

These are made up of optimum quality raw material which made the panel stand strong.

Even in the most demanding application, our boxes can work well.

In KDM, you can find a wide range of boxes that meet the protection requirement of the project.

The terminal boxes are available in many different sizes, shapes, styles, colors, and more.

With that, you can guarantee the best solution for your needs.

The terminal boxes are available in different models.

It includes outdoor terminal Box, 3 Phase Terminal Box, 200AMP Terminal Box, Indoor Terminal Box, and more.

For any commercial or industrial application, we have panels for you.

These boxes can also be built-in with additional accessories which allow the panel to be more accessible.

Also, we can design boxes that will meet the required protection of the intended application.

We have terminal boxes with an IP66, IP67 degree of protection.

This is well suited in the outdoor environment and even when installed indoors.

Ingress of dust, dirt, and other elements will also be prevented.

Certainly, you can eliminate the risk of equipment failures and other concerns.

Terminal Box

The terminal box offered by us helps improve the safety of the system, reliable and powerful design to various electrical units.

Our range of terminal box products is ideal used in the food processing facilities, chemical facilities, food and beverage facilities, and other commercial and industrial facilities.

As the boxes have great resistant to corrosion, flame, and wet environment, they are practical to use in this area.

The enclosure is convenient and easy to install.

KDM offers you a high quality, precise, and reliable terminal box.

Terminal Box a

For the last 10 years, we had to gain wealth knowledge regarding terminal boxes requirements.

Combined with a different state of the art equipment and best material, we can fully produce a modern functional power system.

They are developed by our experienced and talented engineers for all the power management solutions.

We are one of the leading terminal box manufacturers, thus we also offer quality products related to these boxes.

With the decades of experience and knowledge in manufacturing, we can provide high-tech solutions configured in accordance with your requirements.

Our terminal boxes are cost-effective and only need limited maintenance.

Though we deal with our product economically, we insist on excellent workmanship from all our staff.

Whether they are based in an office or infield, you can assure quality services from all of us.

If you depend on your order with KDM, you can look forward to exceptional and high standard terminal box products.

If you need more info, please don’t hesitate to contact us today!

Terminal Box – The Definitive FAQ Guide

Every electrical system consists of smaller devices and connections needed for proper functioning.

These parts also need housing, especially when they are used on harsh industrial sites and power plants.

For this purpose, terminal boxes and enclosures can be used.

What is the terminal box?

The terminal box is an enclosure that includes, mounts, and protects one or more terminals or terminal boards.

It might include a cover and such accessories as mounting hardware, brackets, locks, and conduit fittings.

A terminal is a point at which a conductor from a component, device or network comes to an end.

A terminal may simply be the end of a wire or it may be fitted with a connector or fastener.

Terminal box

Where is the terminal box used?

In general, terminal boxes can be used in any application where there is a need to house connections or small devices, like regulators.

Thus, terminal boxes can be successfully used in the next cases.

# 1. Terminal box for HVAC

Terminal boxes are devices in HVAC systems that are located close to rooms and control airflow to those rooms.

In practice, terminal boxes can contain temperature or air regulators.

Terminal box for HVAC

# 2. Terminal box for electric motor

Terminal boxes can also be used to house electric motors, which might be a part of the corresponding system.

Such motors can be used for domestic applications, as well as for manufacturing purposes.

For example, the electric motor is a part of practically every forklift machine.

Housing for electric motor

# 3. Terminal box for lighting fixtures

Some lighting systems also utilize terminal boxes for their purpose.

E.g. terminal boxes can house lighting intensity regulators.

Wire box for lighting

# 4. Terminal box for telephone systems

Telephone terminal boxes with screw connections are used to join telephone cables.

Such terminal boxes are suitable for use in complex telephone extension layouts to route cable from one central point.

Telephone terminal box

# 5. Terminal box for power generators

In the case of generators, a terminal box allows for fast and safe use of roll-up or portable generator systems.

These boxes make the connection permanent, and offer you a reliable method of engaging backup power in the event of an incident without fiddling with cords and unsafe connections.

Box for generator

# 6. Terminal box for marine purposes

Marine terminal boxes are used in systems of maritime transport, like boats, ships, etc.

The main thing about such boxes is their ability to withstand water influence and protect inner equipment from water jets.

Marine terminal box

# 7. Solar panel terminal box

Terminal boxes can be a part of a successful solar panel station.

Various panels can be connected to one terminal box that will distribute extracted energy to other systems afterward.

Solar panel box

# 8. Terminal box for street light

As well as in the case of lighting fixtures, terminal boxes can be used as regulators, or simply to connect street light devices together.

The main thing about such terminals is their ability to withstand harsh weather conditions, like strong winds, rains, etc.

Street light pole box

# 9. Terminal box for hazardous areas

Speaking of manufacturing sites, a possibility of hazardous influence is much more likely in such places.

For example, there can be a massive heat dissipation on-site, or a possibility of mechanical impact, so such terminal boxes have to be able to withstand such influence.

Aluminum box for use in hazardous areas

# 10. Terminal box for alarm systems

Alarm systems for homes and public facilities can’t work without terminal boxes.

Boxes and small enclosures can be used for connection housing, as well as for regulators.

Fire alarm cabinet

# 11. Terminal box for door entry systems

Door entry systems protect property from intruders.

They might also be a part of an alarm system, where all connections are housed inside terminal boxes.

Door entry connection box

How many types of terminal boxes are there?

# 1. Fiber terminal box

Fiber terminal boxes are sealed enclosures to distribute fibers for FTTX networks.

They are also designed for fiber splicing, termination, and cable management.

Fiber terminal box

# 2. Battery terminal box

A battery box is a switching unit for the battery in an electric mechanism.

It connects or disconnects the components in the mechanism, which need energy from the battery.

Battery terminal

# 3. Explosion-proof terminal box

The explosion-proof terminal box is needed on the chemical and petrochemical plants, offshore platforms, refineries and any other industry where hazardous atmospheres (gas and combustible dust) are potentially present.

Such boxes and enclosures can protect the equipment from explosive impacts, as well as from dangerous particles.

Explosion-proof box

# 4. Three-phase terminal box

Three-phase electric power is a method of alternating current electric power transmission and distribution.

Due to its effectiveness, this method is the most common when it comes to modern electric applications.

The three-phase voltage is 415V.

Three-phase plastic box

# 5. Single-phase terminal box

The single-phase power supply has one distinct wave cycle and requires the single wire to connect the circuit.

Its voltage is 230V.

Single-phase terminal box

# 6. Low voltage terminal box

Low voltage refers to the mains voltages as used by domestic, light industrial, and commercial consumers.

# 7. Interface terminal box

With the help of the interface terminal box, it is easier to view and operate with the inner equipment.

Windowed or screwed removable covers are used for this purpose.

# 8. Terminal extension box

Extension of the terminal box can house extra wires and connections that also require protection.

# 9. Outdoor terminal box

To secure inner devices and make them weatherproof, outdoor terminal boxes utilize the best materials and designs.

Such boxes have to go through hard testing procedures before going on the market.

Outdoor phone terminal box

What materials are used for the terminal box?

There are four materials used widely by manufacturers when producing terminal boxes:

  1. Stainless steel terminal box.
  2. Steel terminal box.
  3. Aluminum terminal box.
  4. Plastic terminal box.

Steel terminal boxes are heavy, but they provide great impact protection.

Stainless steel gives boxes even more strength, as well as additional protection from rust.

Aluminum terminal boxes have practically the same useful qualities as steel, however, aluminum weighs less and has better conductivity qualities.

Finally, plastic terminal boxes are the cheapest and have lesser weight.

Due to it, they can be easily installed and moved.

Stainless steel boxes

What is the terminal box HS code?

Several categories can be applied in the case of terminal box HS code.

For more information, please, follow this guide.

How to wire terminal box?

The wiring of the terminal box depends on the chosen type.

For example, a single-phase connection utilizes single wire, so its installation doesn’t have to cause any troubles.

When it comes to a three-phase connection, the main rule is that each conductor carries an alternating current of the same frequency and voltage amplitude relative to a common reference but with a phase difference of one-third of a cycle between each.

Please, watch the following video to learn more about terminal box wiring.

How to mount terminal boxes?

Typically, terminal boxes are wall-mounted, with the help of screws or DIN rails.

Before beginning the mounting procedure, be sure that your electrical equipment is disconnected.

Mark the wall surface for future holes and put the box to them.

Fix the screws inside the holes designed near the edges of the box and fasten them.

Pole mount box

How to install and replace a terminal box?

First of all, you have to mount the box on the wall or other needed surface.

Then, screw the terminal inside the box.

Afterward, the wiring procedure is performed: all cables are connected in the terminal following the type of connection (one, two, or three-phase).

The replacement of the terminal box follows the same steps in backward order.

After you disconnect the terminal box from the circuit, de-attach wires and terminal from it.

Then, you can easily remove the box from the wall or another surface.

Please, read this guide if you want to learn more about the wiring and installation of terminal boxes.

Installation of terminal box

When you need a waterproof terminal box?

Waterproof terminal boxes can withstand direct jets of water and successfully protect equipment from small drops and any other kind of water influence.

We’ve already mentioned marine and outdoor junction boxes, which are of course waterproof.

However, these are not the only examples.

Let’s mention public pools and spa facilities: all thermoregulators and connection boxes have to be waterproof.

Also, let’s not forget about port facilities and other organizations located near the seaside: all electrical systems in such places have to withstand high humidity.

Waterproof terminal box

What is the difference between the terminal box and the junction box?

Junction boxes are boxes with no components mounted in it (i.e. all connections are wire nuts or split bolts).

Most conductors are long enough to be pulled from the box (i.e. the 6″ length required at devices)

Terminal boxes are boxes with components (i.e. terminal strips) mounted in it.

Most conductors are trimmed to length to fit into the terminal (like in a load center).

Junction boxes need to be accessible but don’t require working clearance.

Terminal boxes would require working clearance.

Junction box

What types of IP rated terminal box can KDM produce?

KDM catalog contains high qualitative enclosures and boxes with all kinds of IP ratings.

The following terminal boxes are available:

  1. IP45 terminal box can protect the equipment from small objects like screws and wires, and also can withstand weak water jets.
  2. IP54 terminal box can withstand splashes of water, and protect the pieces of equipment from dust particles and small objects.
  3. IP55 terminal box can withstand weak water jets and has the same protection from hard objects as the previous type.
  4. IP56 terminal box protects the inner equipment from powerful jets of water and dust particles.
  5. IP57 terminal boxes have the same dust protection as all IP5* enclosures, but can be immersed in water up to 1 m.
  6. IP65 terminal box is dust-tight, which means that even tiny particles of dust can’t get inside it; this box also withstands water jets.
  7. IP67 terminal box can fully withstand both dust and water.

Please, follow this link to find out more about IP ratings.

Note: KDM Steel can also produce NEMA rated boxes and enclosures.

If you have certain requirements in the matter of security and protection, give us a quote and our specialists will come up with the best solution possible.

IP and NEMA ratings

What are the accessories of a terminal box?

# 1. Terminal box cover

Box covers are used for closed terminals.

These parts wear out the most, thus their replacement is quite a common thing.

Terminal box cover

# 2. Terminal box connector

The terminal box can be connected to the circuit with the help of connectors.

KDM can provide connectors that fulfill all common international standards.

Terminal box connector

# 3. Terminal box gaskets and glands

Gasket and glands are used to seal the box and gain better protection from heat and corrosion.

Gasket for terminal box

# 4. Terminal box DIN rail

DIN rail boxes and enclosures can be mounted on DIN rails, which is a great way to save additional space inside your facility.

DIN rail

How to make a drawing of a terminal box?

Drawings of terminal boxes are typically made with special virtual tools, such as AutoCAD.

Hand drawings are also possible because KDM designers can perform virtual drawings from them (it is essential to have virtual ones to download them to machine OS).

If you want to learn more about drawings and needed software, please, check the following KDM page.

Terminal box drawing

Why KDM is a professional terminal box manufacturer in China?

KDM has been on the market for more than 10 years and fulfilled more than a thousand orders since.

We guarantee the quality of our products by constant modernization of our tools, as well as by successful verification of our manufacturing site by independent commissions.

Our staff includes more than 50 engineers that can produce practically any amount of products.

We provide 24/7 support service for our clients, as well as guidelines for delivery from China.

We can produce needed drawings within one working day, and provide you a sample within three working days + delivery time.

If you are not satisfied with our catalog, you can require additional customization options.
