Methanol Storage Tank For Sale
- 50 liters to 100,000 liters capacity range
- -20°C to +50°C operating temperature
- Up to 0.5 bar working pressure
- Round, square, cylindrical shapes available
- Industrial-grade and anti-corrosive paint finish
- EN12285-2 and SANS 10131 standards
Methanol Storage Tank Supplier and Manufacturer
When you partner with KDMSTEEL, you get a heavy-duty methanol storage tank that is built from high-grade S235 and S355 steel with capacities ranging from 50 Liters to 100,000 Liters.
You can pick between vertical or horizontal setups and round or square shapes to fit your floor space, featuring your choice of dish, flat, or conical ends and top lids.
Our tanks are engineered to handle pressures up to 0.5 bar and temperatures from -20°C to +50°C and we strictly follow the EN12285-2 and SANS 10131 safety norms.
Each of our methanol storage tanks features a leak-proof double-wall design, anti-corrosive internal coatings, an industrial painted finish, and a dedicated vent valve equipped with an integrated flame arrestor.
Whether you need stainless steel for purity or vulcanized rubber linings for extra protection, KDMSTEEL provides reliable methanol storage tanks as long-term solutions for industries ranging from pharmaceuticals and petro-chemicals to food and agriculture.
Partner with us and send us your floor plan layout now!
Top Picks for Reliable Methanol Storing
This tank has a 1 to 6 mm thickness, this tank features a durable three-layer construction available in vertical or horizontal configurations, with capacity ranging to from 500 Liters to 100,000 Liters.
Made with 304 or 316 stainless steel with a durable stainless finish, has customizable dimensions at a maximum working pressure of 20 MPa and weighs 1,000 kg.

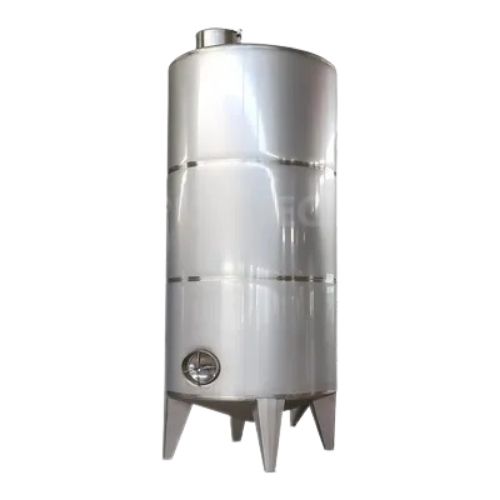

With a 5m³ capacity and overall dimensions of 4650 x 1810 x 2330 mm, this tank operates at a working pressure of 1.0 MPa.
Made from high-quality stainless steel, this tank supports a capacity range of 100 Liters to 5,000 and is suitable for both small-scale and medium production plants.

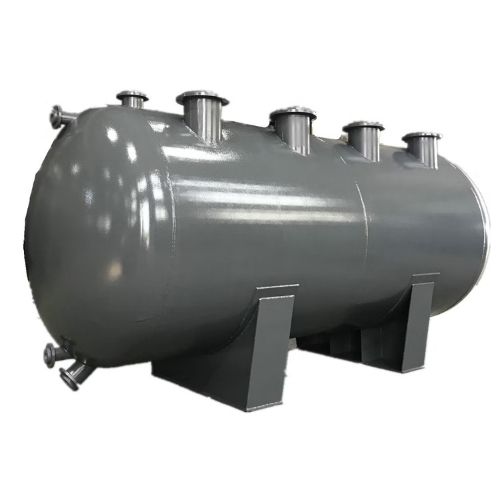

This tank utilizes Q235B, Q345B, or S31603 materials with 16 mm PE or 3 mm PTFE internal lining with 12192 x 2438 x 259 mm dimensions.

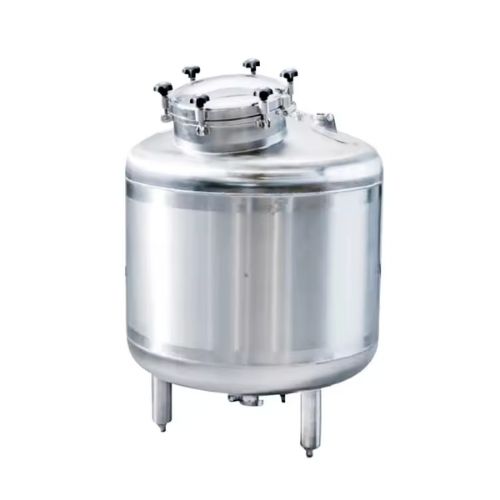

This tank has a maximum working pressure of 5 MPa and offers a capacity range of 100 Liters to 20,000 Liters with mirror or matte finish options.

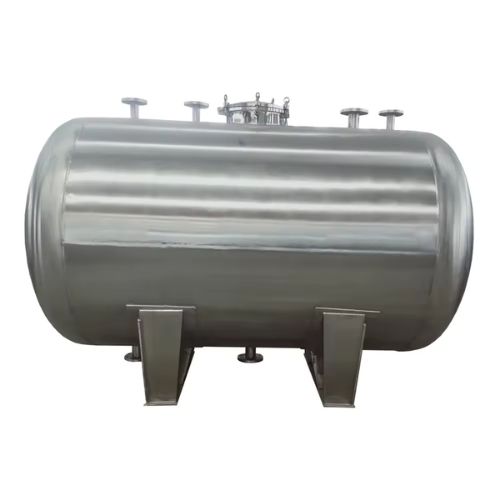

Custom capacity ranging from 10 Liters to 8,000 Liters with 1860 x 820 x 850 mm dimensions that operates on 110V 50Hz power with 120 W consumption.
Made using SUS304 or SUS316L stainless steel with a maximum working pressure of 0.3 MPa, 1 to 5 mm thickness and 3-layer construction, and capacity ranging from 50 Liters to 100,000 Liters.
Choose by Materials and Specialized Linings
-
Mild Steel and S235 / S355 SteelStrong and cost-effective. We use these steels as structural backbone and we often add internal coatings to prevent any chemical reaction.
-

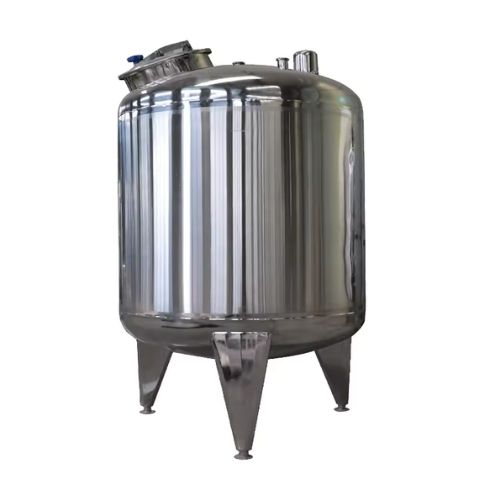

Acier inoxydablePurity for the pharmaceutical or food and beverage industry. Stainless steel offers the highest level of corrosion resistance and this ensures that your methanol does not pick up any metallic “flavor” or impurities during storage.
-
Vulcanized Natural RubberThese are excellent for absorbing impact and resisting chemical wear.
-

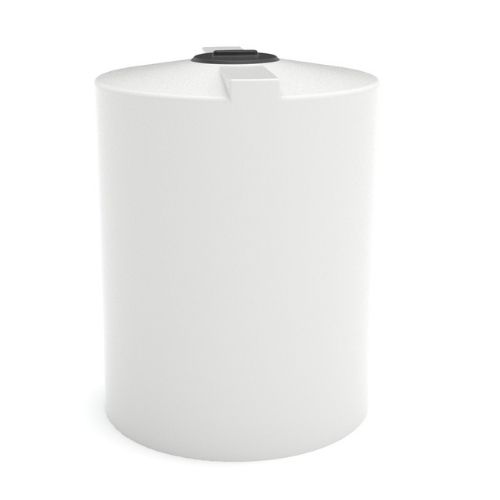

High-Density Vulcanized PolyethyleneThese are great for tanks that need to handle a variety of chemical “mediums” without degrading.
KDMSTEEL Safety Standards and Quality Control
At KDMSTEEL, we follow a strict customer-focused approach and our methanol storage tanks comply with international safety standards.
We make sure that the seals are 100% airtight.
Our structural integrity is what makes us a leading manufacturer in the tank industry.
We can verify that the anti-corrosive paint is thick enough to withstand years of chemical exposures.
Specifically for our double-walled tanks, we ensure that the interstitial space is perfectly sealed.

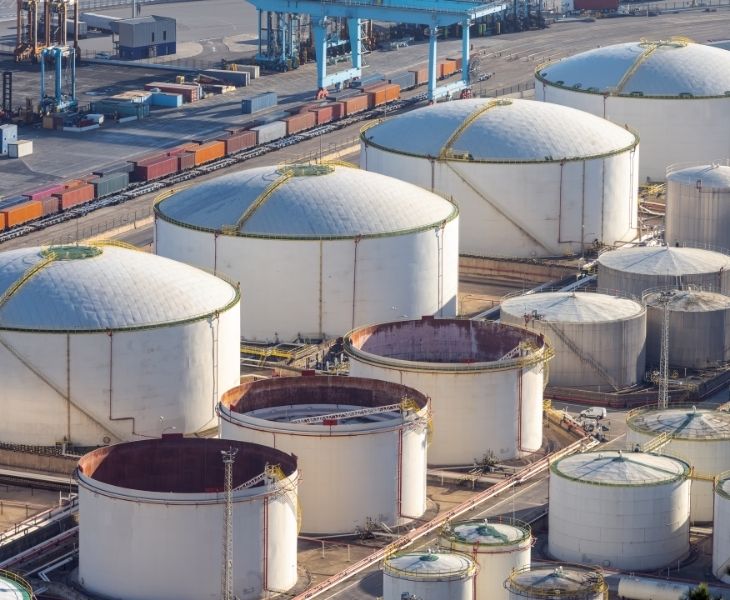

KDMSTEEL Methanol Storage Tank Material Finish
At KDMSTEEL, we build our methanol storage tanks using high-grade S235 and S355 steel that is paired with internal anti-corrosive coatings. This makes sure that the steel does not react with the methanol and keeps your chemical pure and your tank walls thick and strong.

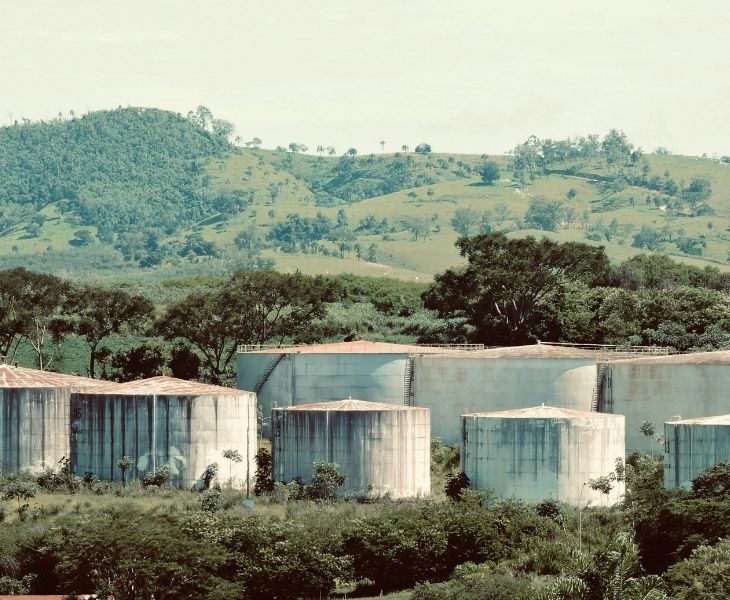

KDMSTEEL Methanol Storage Tank Fire Risk Solution
At KDMSTEEL, we equip our methanol tanks with dedicated vent valves and integrated flame arrestors that prevent an external spark from traveling back into the tank. This feature is not just ‘“nice to have”, but a “life-saver” for methanol storing.

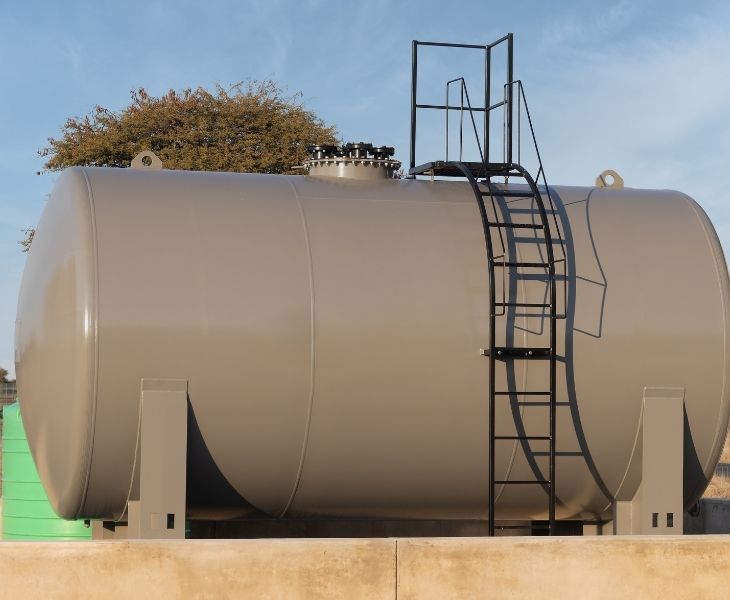

KDMSTEEL Double-Walled Protection
At KDMSTEEL, we strongly recommend double-walled tanks for methanol storage. If the inner wall has a leak, the outer wall will catch the spill. This gives you an early warning long before a drop of methanol ever touches your floor or soil outside.
KDMSTEEL Customization: We Build for Your Site

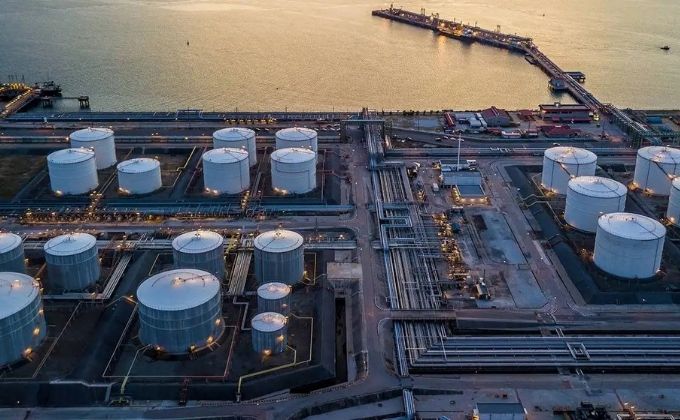

You can choose how you want to access the top of your methanol storage tank:
- Top Lid Type: For easy manual filling or cleaning.
- Flat Type: For a low-profile look.
- Dish End Type: Best for managing internal pressure.
- Fixed Conical Roof: Ideal for outdoor methanol storage tanks to prevent rainwater from pooling on top.

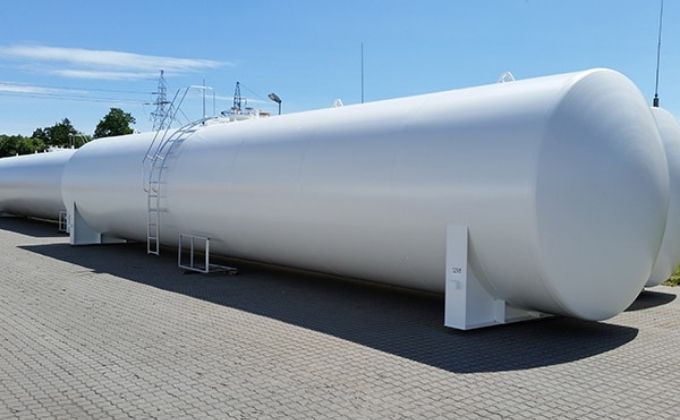

If you have ever dealt with the sludge that settles at the bottom of your methanol storage tanks and are not easy to clean, we offer these solutions:
- Conical End Bottom: Slopes to a center point for 100% drainage.
- Dish End Bottom: Provides strength and easy cleaning.
- Flat End Bottom: Best for tanks that sit directly on a concrete pad.
KDMSTEEL Methanol Storage Tank Product Information
| Fonctionnalité | Spécification |
| Matériels | Mild steel, S235 / S355 steel, Stainless steel |
| Internal Linings | Vulcanized natural rubber, High-density vulcanized polyethylene |
| Capacity Range | 50 Liters to 100,000 Liters |
| Température de fonctionnement | -20°C to +50°C |
| Working Pressure | Up to 0.5 bar |
| Standards Met | EN12285-2, SANS 10131 |
| Shapes Available | Round, Square, Cylindrical |
| Finition | Industrial-grade, Anti-corrosive paint finish |
| Orientation | Vertical or Horizontal |
Yes, every methanol storage tank we build is finished with industrial-grade paint to protect the metal from the heat of the sun.
Because it is like a backup system and has two layers of steel, this protects your business from expensive environment cleanups and government fines.
KDMSTEEL uses high-quality S235 or S355 steel to give the tank a very strong and sturdy frame. We also offer a stainless steel option if you need the highest level of purity for your methanol.
Yes, KDMSTEEL offers both vertical and horizontal shapes to help you save floor space, we can also build square tanks if you need the tank into a tight corner.
At KDMSTEEL, we can add sturdy ladders, safety railings, and top platforms to your order.
We can install clear level gauges or digital sensors so you always know exactly how much methanol you have and you can choose the type of gauge that works best for you.
If you follow basic maintenance, our methanol storage tanks are built to serve your company for many decades.
We handle the logistics and make sure the tank is loaded onto a trailer safely for transport, we will coordinate with you to make sure the delivery day goes smoothly.
Produits connexes
-

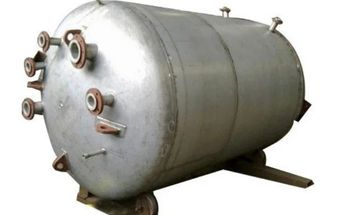

Solvent Storage Tank -

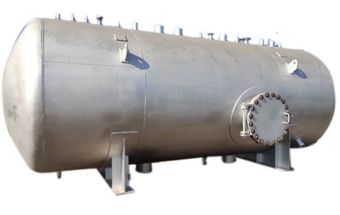

Condensate Storage Tank -

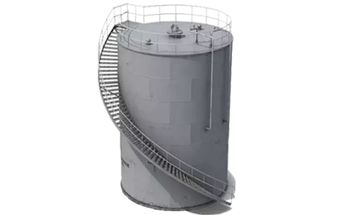

Atmospheric Storage Tank -

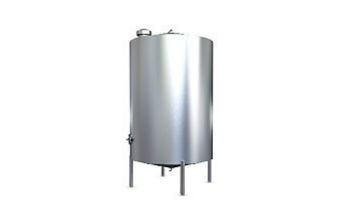

Whey Storage Tank
