Advantages of Standard Distribution Boxes

In life, most of the problems in power management can be solved by a standard distribution box. The safe and efficient power distribution solution of standard distribution boxes greatly verifies the safety of people and property. Why should you choose a standard distribution box? This article will help you understand the advantages and the purchasing necessity of it.

What is a standard distribution box?

The distribution box is the cornerstone of the power system, mainly serving as a central node responsible for distributing electricity to various circuits. It is mainly composed of the box shell, guide rails, pemutus sirkuit and wiring system.

Standard distribution boxes are electrical equipment installation boxes that are strictly produced in accordance with national or international unified technical specifications, safety standards and manufacturing processes.

It is not only a physical enclosure for accommodating and protecting electrical connections, but also a complete, standardized and interoperable unit of the power distribution system.Standardized production norms guarantee the reliability, safety and economy of distribution boxes throughout their entire life cycle.

Effect in Electrical Systems

Providing Safety Protection: The ground fault circuit interrupter(GFCI) can cut off the fault circuit in time to guarantee the safety of people and property.

Power Distribution and Control: The power supply is divided into multiple independent and separately controllable branches, and then supplied to different terminal devices.

Maintenance and Management: Centralize all switches, with clear markings for easy daily operation. Moreover, the modular design enables rapid identification and replacement of faulty components.

Core Advantages of Standard Distribution Boxes

Premium Materials and Design

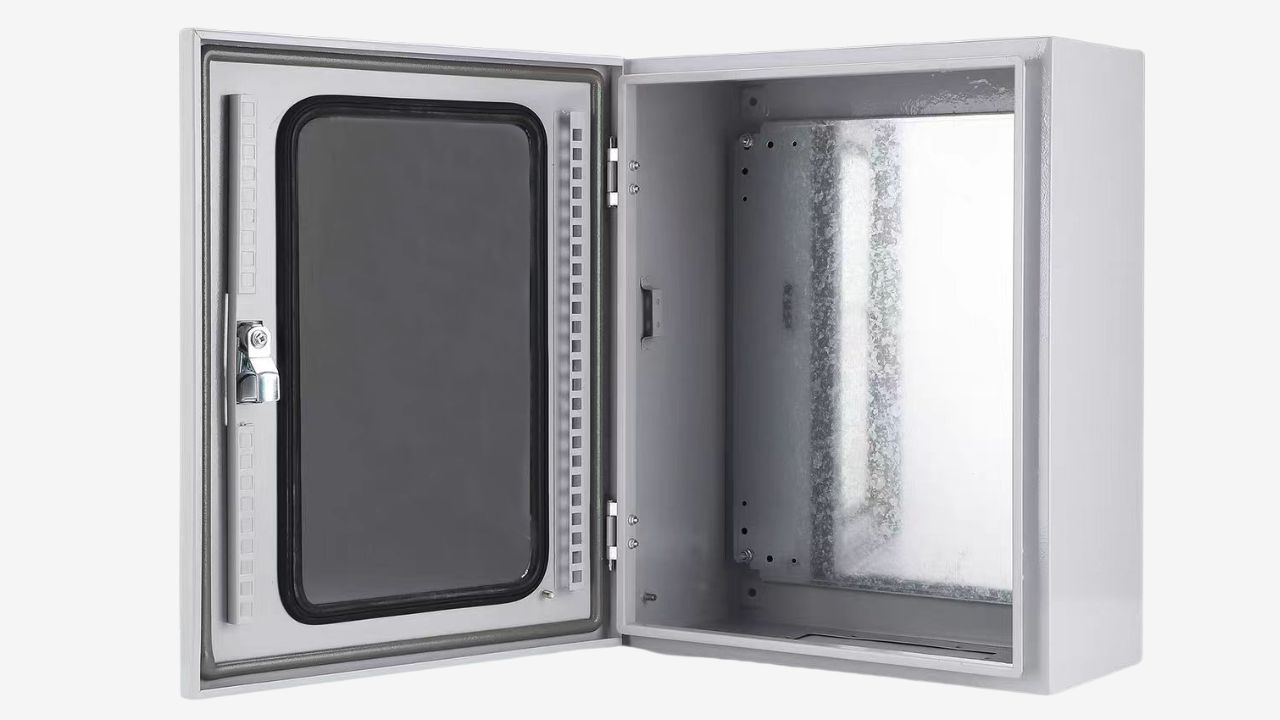

The body of the distribution box is made of high quality cold rolled steel sheet. The common types include kandang baja galvanis Dan powder-coated enclosure. Therefore, it has excellent anti-corrosion, anti-rust and weather resistance properties. You can use it for a long time in harsh industrial environments such as dampness, acidity and alkalinity.

The box size and rail installation all adopt the same module to guarantee that different electrical components can be used interchangeably, interchanged and installed in an orderly manner. Besides, the interface also recommends standard implementation for standardized production.

The box body is usually equipped with ventilation and heat dissipation holes. The excellent heat dissipation performance avoids the decline in component performance or premature aging caused by heat accumulation. High-quality manufacturing can also reduce the risk of scratches during installation and maintenance.

Protection and Safety

Inside the distribution box, there are clear area divisions, which can achieve isolation between strong and weak electricity, reducing interference and the risk of fault spread. In addition, the busbar tembaga for grounding also provides a basic guarantee for personal safety.

As an integrated safety platform, the distribution box provides overload and short-circuit protection, leakage protection, etc. When the current in the line abnormally rises, the power supply will be cut off instantly to prevent the wires from overheating and catching fire. The GFCI will trip directly within 0.1 seconds in the event of an electric shock to you or an insulation fault, providing direct protection for your life safety.

Distribution boxes with IP ratings, such as Tingkat IP65, can effectively prevent dust, moisture and rain from entering, ensuring the safe operation of internal electrical components in specific environments. A reliable grounding system guarantees that the metal casings of all equipment and the grounding wires are firmly connected, safely guiding fault currents into the ground.

Centralized Distribution

The distribution box is an efficient and flexible power hub. Through the internal busbar and circuit breaker, it can distribute the power input from the upper-level power supply into multiple independent and controllable circuits as needed. This helps to achieve zonal and separate power supply.

What’s more, the distribution box centralizes the on-off of all circuits, facilitating global energy management, zonal maintenance, or rapid power-off of the entire system in emergency situations.

Organization and Management

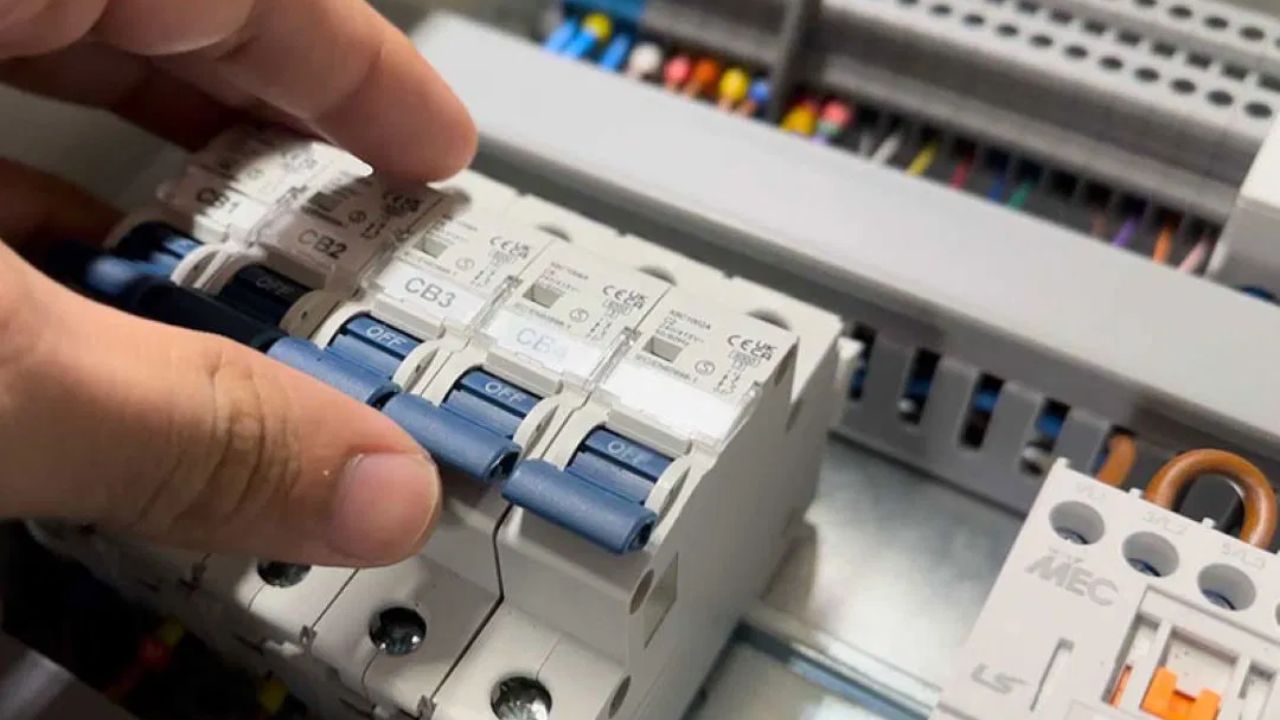

The distribution box is equipped with a built-in wire slot and tie rod, which is convenient to realize standardized wiring. Regularization of the wiring not only makes it neater but also more conducive to heat dissipation and fault detection. The dumping labels of circuit breakers and lines greatly enhance the efficiency and accuracy of daily operations, fault location and equipment management.

Expansion Capacity

When designing the box, 20% to 30% of the installation space and incoming line capacity are usually reserved. Standard distribution boxes can be flexibly configured. You can choose and install circuit breakers, electricity meters and other modules with different functions according to your usage requirements.

If you need to add new equipment, you only need to add the corresponding modular circuit breakers and do not need to replace the distribution box.

It is very easy to integrate digital devices such as smart meters and energy monitoring modules into a standard distribution box. This can achieve remote monitoring, energy consumption analysis and predictive maintenance.

Kepatuhan dan Standar

Standard distribution boxes must comply with national and international series standards, such as IEC 61439 and GB 7251, and also pass authoritative certifications such as CCC(China), CE(EU), Bahasa Inggris(United States), etc.  This makes sure that the basic safety indicators of the material, such as flame retardancy, electrical clearance and creepage distance, are qualified.

These certifications also mean that their key indicators such as electrical performance, mechanical strength, and temperature rise limit have undergone strict third-party testing, providing legal guarantees for safety and quality. The production process adopts standardized stamping, welding and spraying techniques, which can guarantee structural strength, corrosion resistance and consistency.

If you use standard distribution boxes, they can help you avoid legal risks in project acceptance, insurance claims and accident liability determination.

Diagnostic Capabilities

The transparent box door and the open status indicator allow you to implement quick inspections.If a trip occurs, clear loop delineation and identification can help you quickly locate the faulty loop. You can isolate the problem circuit by supplying power to each circuit one by one and minimize the scope and duration of the power outage.

High Installation Rate and Maintenance Efficiency

The standard installation hole spacing, guide rail and box size enable it to be quickly fixed on the wall or bracket. Convenient installation can shorten the construction period and reduce the excessive reliance on the technical experience of installers.

The modular design makes it easier to replace faulty circuit breakers. The ample internal space also makes line inspection and testing safer and easier.

Hemat biaya

The use of standard distribution boxes can optimize the initial cost. Its universality makes procurement and inventory management more efficient. In addition, standardized distribution boxes can also reduce the time for customization, processing and debugging, directly saving labor costs.

Its convenient installation and efficient maintenance indirectly reduce the losses caused by production shutdowns. Most importantly, the durability, scalability and technical compatibility of standard distribution boxes can prevent waste caused by multiple replacements.

Tanya Jawab Umum

How Deep Should the Distribution Box be Installed?

The installation depth of the distribution box depends on its type and installation method. Its main installation principles guarantee safety and compliance.

If it is a recessed distribution enclosure, you need to embed it into the wall, and its standard depth is 80 to 100 mm. This is also a common specification for many residential and commercial buildings. After installation is completed, you must make sure that the box frame is flush with the final wall surface.

If it is a surface-mounted distribution enclosure, you need to fix it directly on the wall to ensure a firm installation and consider neat wiring.

Can I Inspect a Distribution Box on My Own?

Yes. But you can only conduct external inspections. The inspection items include the appearance of the box, whether there is any strange smell, and whether its opening and closing status is normal, etc. It’s prohibited that you open the box door or operate any switches. If you encounter situations such as overheating or unpleasant odors, you need to contact a professional electrician to complete the task.

What Are the Evaluation Criteria for Standard Distribution Boxes?

In general, when you make an assessment, you should first check the certification marks, such as CCC, CE, UL, etc. Secondly, it is necessary to verify whether the protection level and rated current meets the requirements. Besides, a reasonable structural design and excellent material craftsmanship are your top choices for purchase. You can also request the supplier to provide a type test report as proof.

How Is the Size of a Distribution Box Determined?

The size of the distribution box is mainly determined by the number of installed devices, the installation method and the protection level. The number of circuits and the type of switch are the main factors determining the size.

The surface-mounted distribution enclosure and higher IP grades boxes are usually larger in size. The specific dimensions of the distribution box need to be precisely calculated by a professional electrician based on your electrical design drawings.

What are Common Violations in Distribution Box Installation?

Common violations include no space for heat dissipation during box installation, insecure switch installation, and metal casings not being firmly grounded, etc. These violations can cause electric shock, electrical fires and other accidents, and lead to the inability to quickly cut off power and carry out maintenance when faults occur. Therefore, when installing, you must hire a professional electrician to implement standardized installation and acceptance.

What Is the Difference Between a Distribution Box and a Distribution Board?

Structure, function level and use are the core differences between distribution box and papan distribusi. The distribution box is a closed box body, while the distribution board is an open installation board. Distribution boxes are mainly used to distribute electricity, while distribution boards are used to centrally install and control circuit components. The distribution box is an independent finished device, emphasizing protection and terminal distribution. The distribution board is an assembly platform that emphasizes modular integration.

Final Thought

The standard distribution box produced by KDM uses high quality raw materials and advanced production technology. The distribution boxes we produce can meet excellent production standards in both appearance and performance. As a professional manufacturer of enclosed electrical enclosure, we spare no effort to provide you with the best service. Whether you are purchasing standardized finished products or need customized production, we can meet your requirements. We will respond to your inquiry promptly, Hubungi kami now.
